UL Compliant Galvanized Strut Channel Clamps / Strut Pipe Clamps For EMT Conduit
| Product Name: | STRUT CLAMP | Marking: | TOPELE |
| Material: | STEEL | Standard: | UL |
| Size: | 1/2" - 4" | Finish: | Galvanised |
| High Light: | strut channel clamps,strut pipe clamps |
||
UL Standard Galvanized Strut Clamp / Strut Channel Clamp For EMT , Rigid Conduit
Decription:

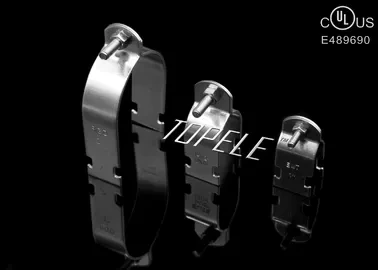

Galvanized Steel Strut Clamp
One size fits both EMT conduit and Rigid pipe sizes One-piece break apart design includes captive combo head machine screw and built-in nut (thread impression)
Surface finish:galvanized
Size: 1/2"-4"
Material:Galvanized Steel with one Steel Nut & Bolt
1/2" TO 4" Strut Clamp available
Delivery Detail:within 20days from the signing of contract for channel clamp
Payment:L/C,T/T
Quality:Quality passed UL cetification,Report reference E489690
Field Names:Conduit clamps, cowboy clamps, mae west clamps, minnies, stand off straps, standard conduit clamps, minis, pipe clamps.
Applications:
These universal strut clamps are used to mount EMT and rigid conduit from strut channel.
Differernt kinds of metal stamping parts can be produced
Specifications:
| CAT# | SIZE | TYPE |
| ECC-50S | 1/2" | EMT |
| ECC-75S | 3/4" | EMT |
| ECC-100S | 1" | EMT |
| ECC-125S | 1-1/4" | EMT |
| ECC-150S | 1-1/2" | EMT |
| ECC-200S | 2" | EMT |
| ECC-250S | 2-1/2" | EMT |
| ECC-300S | 3" | EMT |
| ECC-350S | 3-1/2" | EMT |
| ECC-400S | 4" | EMT |
| RSC-50 | 1/2" | RIGID |
| RSC-75 | 3/4" | RIGID |
| RSC-100 | 1" | RIGID |
| RSC-125 | 1-1/4" | RIGID |
| RSC-150 | 1-1/2" | RIGID |
| RSC-200 | 2" | RIGID |
| RSC-250 | 2-1/2" | RIGID |
| RSC-300 | 3" | RIGID |
| RSC-350 | 3-1/2" | RIGID |
| RSC-400 | 4" | RIGID |
| SC-50 | 1/2" | UNIVERSAL |
| SC-75 | 3/4" | UNIVERSAL |
| SC-100 | 1" | UNIVERSAL |
| SC-125 | 1-1/4" | UNIVERSAL |
| SC-150 | 1-1/2" | UNIVERSAL |
| SC-200 | 2" | UNIVERSAL |
| SC-250 | 2-1/2" | UNIVERSAL |
| SC-300 | 3" | UNIVERSAL |
| SC-350 | 3-1/2" | UNIVERSAL |
| SC-400 | 4" | UNIVERSAL |
Advantage:
Topele’s two piece construction provides a tight fit in strut. Additionally, their screw tight clamping action secures conduit in overhead strut channel or wall mount applications.electric clamp,electrical clamp,fitting clamp,pipe clamp,steel clamp,galvanized clamp,metal clamp,Strut Channel Clamp,The zinc plated steel provides durability and corrosion protection.
Competitive Advantage:
+Quick Delivery: 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO / UL certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
