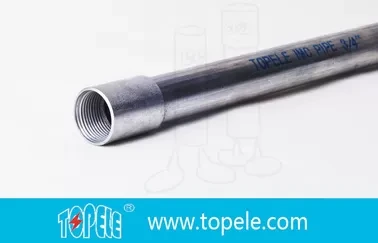

Galvanized Steel Rigid conduit metal 10-ft conduit with threaded coupling
| Usage: | For Wiring Routing | Length: | 10 Ft. |
| Surface Treatment: | Hot-dipped Galvanized | Size: | 1/2" To 6 " |
| Threaded Type: | NPT | ||
| High Light: | explosion proof conduit fittings,imc conduit fittings |
||
Galvanized Steel Rigid conduit metal 10-ft conduit with threaded coupling
Descrition:
ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit /IMC PIPE/IMC TUBO
/RIGID CONDUIT
with coupling and protection cap
· TOPELE BRAND IMC CONDUIT Protect insulated electrical conductors and cables
· Galvanized steel construction provides shielding from magnetic fields and protection from impact damage
and crushing
· Electroplated couplings prevent zinc build-up
· Designed for use with threaded connections
· Meets CSA standard
· Description: 1/2"-4" IMC CONDUIT X 10'
· Brand Name: TOPELE
· Length : 10 ft.
· Material : Galvanized steel / Hot-dipped Galvanized
· Size: from 1/2" to 6 "
Key words: IMC CONDUIT, IMC PIPE, IMC TUBE, IMC TUBO RIGID CONDUIT, RIGID PIPE,RIGID TUBE,
RMC CONDUIT
Applications:
TOPELE IMC CONDUIT is designed to protect and route cables and conductors. It can be installed either
exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of
Pre-galvanized steel and has an organic coating inside.
IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields
and features electroplated couplings to resist buildup of zinc on the threads.
Specifications:
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
|
IMC CONDUIT (INTERMEDIATE METAL CONDUIT) |
|||||
|
1/2" |
20.7mm |
1.98mm |
3.05 |
15pcs/bundle |
2.79 |
|
3/4" |
26.1mm |
2.1mm |
3.05 |
10pcs/bundle |
3.82 |
|
1" |
32.8mm |
2.35mm |
3.05 |
8pcs/bundle |
5.38 |
|
1-1/4" |
41.6mm |
2.42mm |
3.05 |
5pcs/bundle |
7.13 |
|
1-1/2" |
47.8mm |
2.54mm |
3.05 |
5pcs/bundle |
8.64 |
|
2" |
59.9mm |
2.67mm |
3.05 |
4pcs/bundle |
11.50 |
|
2-1/2" |
72.6mm |
3.81mm |
3 |
1pcs/bundle |
19.10 |
|
3" |
88.3mm |
3.81mm |
3 |
1pc |
23.45 |
|
3-1/2" |
100.9mm |
3.81mm |
3 |
1pc |
26.95 |
|
4" |
113.4mm |
3.81mm |
3 |
1pc |
30.42 |
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
|
IMC thin conduit (INTERMEDIATE METAL CONDUIT) |
|||||
|
1/2" |
20.7mm |
1.78mm |
3.05 |
15pcs/bundle |
2.53 |
|
3/4" |
26.1mm |
1.91mm |
3.05 |
10pcs/bundle |
3.50 |
|
1" |
32.8mm |
2.16mm |
3.05 |
8pcs/bundle |
4.97 |
|
1-1/4" |
41.6mm |
2.16mm |
3.05 |
5pcs/bundle |
6.41 |
|
1-1/2" |
47.8mm |
2.29mm |
3.05 |
5pcs/bundle |
7.84 |
|
2" |
59.9mm |
2.41mm |
3.05 |
4pcs/bundle |
10.43 |
Competitive Advantage:
1/2”-4” IMC Conduit/IMC PIPE/IMC TUBO/Rigid Conduit ANSI C80.6
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval+Best Service: fast delivery, strong package, good price, timely
and effective communication
+Powerful Solution: fast and effective solution to problem
