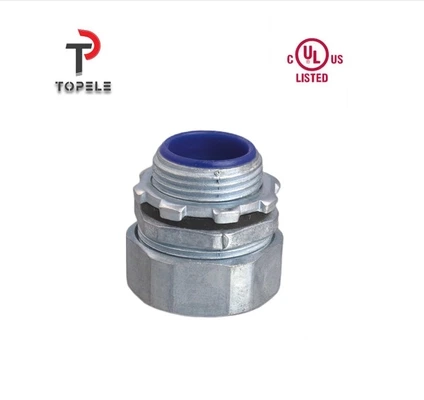

UL Standard Flexible Conduit And Fittings Liquid Tight Connector Straight Type
| Brand: | TOPELE | Material: | Zinc |
| Standard: | UL | Color: | Sliver， Bule， Yellow |
| Size: | 1/2''-4'' | ||
| High Light: | UL Standard Flexible Conduit Fittings,Liquid Tight Flexible Conduit Fittings Connector,Liquid Tight Flexible conduit straight type |
||
4” Flexible Conduit And Fittings Blue / Yellow Straight Liquid Tight Connector
PDF Catalogue:TOPELE Liquid Tight Connector.pdf
Quick Detail:
Liquid Tight Flexible conduit –straight type
Material: zinc die cast
Size: 1/2”---4”
Color: Blue or Yellow
Key Word: Seal tight connectors, liquid-tight connectors, watertight connectors, watertight connectors, insulated seal tight connectors, insulated liquid-tight connector.
Specification:
Standard material: Zinc Die Cast
Tapered threaded male hub NPSM
Insulated or non-insulated
Compact,slim diameter with small turning radius
Furnished with steel locknut and sealing ring
Liquidtight/raintight/oiltight suitable for wet locations
Long ferrule prevents pullout and tight bend conduit pop-out
UL standard 514B, UL listed: E506413
To secure,ground and seal liquid tight metal flexible conduit to boxes and enclosures
The fittings used in many industries,inlcude Petroleum,chemical,waste water threatment
| CAT# | SIZE |
| LTC-15 | 1/2'' |
| LTC-20 | 3/4'' |
| LTC-25 | 1'' |
| LTC-32 | 1-1/4'' |
| LTC-38 | 1-1/2'' |
| LTC-50 | 2'' |
| LTC-64 | 2-1/2'' |
| LTC-75 | 3'' |
| LTC-100 | 4'' |
Competitive Advantage:
Topele’ straight connectors are designed to slip onto the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid-tight seal that decreases the risk of pullouts. All components of these connectors can be easily disassembled and reused. Additionally, the included sealing washers provide iquid-tight seals when connectors are terminated in threadless openings. The heavy-duty locknuts included with every Topele liquid-tight connector ensure the continuity of the grounding. Connectors are zinc electroplated for excellent corrosion protection in damp locations.
