Rigid Steel Electrical IMC Conduit And Fittings 1 - In Galvanized Pipe
| Material: | Steel | Surface Treatment: | Hot Dip Galvanized |
| Length: | 10 Ft | Type: | Electrical Pipe |
| Thickness: | 1.5-3.81mm | ||
| High Light: | imc conduit,explosion proof conduit fittings |
||
rigidl / steel Electrical IMC conduit 1-in Galvanized pipe
Description:

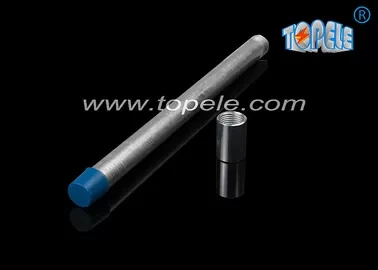

ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit Pipe
with a integral coupling and a protection cap
- IMC conduit is a metal thin walled conduit , Threading on both ends. Couplings and connectors can be added to connect the next piece.
- TOPELE BRAND IMC CONDUIT Protect insulated electrical conductors and cables
- Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
- Electroplated couplings prevent zinc build-up
- Designed for use with threaded connections
- Meets CSA
Key words: IMC CONDUIT, IMC CONDUIT , RIGID CONDUIT , RIGID PIP , RIGID TUBE , RMC CONDUIT , IMC PIPE , IMC TUBE
Applications:
TOPELE IMC CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist buildup of zinc on the threads.
Used as a threadable steel raceway for protection and routing of electrical wiring.
Specifications:
- Standard: 1/2"-4" IMC CONDUIT X 10' / UL1242 & ANSI C80.6
- Brand Name: TOPELE
- Color Family : Metallics
- Conduit type : Metallic
- Type : Conduit
- Flexible : No
- Length : 10 ft.
- Material : Galvani
- zed steel / Hot-dipped Galvanized
- Size: from 1/2" to 6 "
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
Threads Inch |
|
IMC CONDUIT (INTERMEDIATE METAL CONDUIT) |
||||||
|
1/2" |
20.7mm |
1.98mm |
3.05 |
15pcs/bundle |
2.79 |
14 |
|
3/4" |
11-1/2"26.1mm |
2.1mm |
3.05 |
10pcs/bundle |
3.82 |
14 |
|
1" |
32.8mm |
2.35mm |
3.05 |
8pcs/bundle |
5.38 |
11-1/2 |
|
1-1/4" |
41.6mm |
2.42mm |
3.05 |
5pcs/bundle |
7.13 |
11-1/2 |
|
1-1/2" |
47.8mm |
2.54mm |
3.05 |
5pcs/bundle |
8.64 |
11-1/2 |
|
2" |
59.9mm |
2.67mm |
3.05 |
4pcs/bundle |
11.50 |
11-1/2 |
|
2-1/2" |
72.6mm |
3.81mm |
3.05 |
1pcs/bundle |
19.10 |
8 |
|
3" |
88.3mm |
3.81mm |
3.05 |
1pc |
23.45 |
8 |
|
3-1/2" |
100.9mm |
3.81mm |
3.05 |
1pc |
26.95 |
8 |
|
4" |
113.4mm |
3.81mm |
3.05 |
1pc |
30.42 |
8 |
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
Threads Inch |
|
IMC thin conduit (INTERMEDIATE METAL CONDUIT) |
||||||
|
1/2" |
20.7mm |
1.78mm |
3.05 |
15pcs/bundle |
2.53 |
14 |
|
3/4" |
26.1mm |
1.91mm |
3.05 |
10pcs/bundle |
3.50 |
14 |
|
1" |
32.8mm |
2.16mm |
3.05 |
8pcs/bundle |
4.97 |
11-1/2 |
|
1-1/4" |
41.6mm |
2.16mm |
3.05 |
5pcs/bundle |
6.41 |
11-1/2 |
|
1-1/2" |
47.8mm |
2.29mm |
3.05 |
5pcs/bundle |
7.84 |
11-1/2 |
|
2" |
59.9mm |
2.41mm |
3.05 |
4pcs/bundle |
10.43 |
11-1/2 |
Competitive Advantage:
IMC Conduit
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
